Accusize 1/2" Indexable Turning Toolset with 10 Additional C6 Grade Carbide TiN Coated | CVD Coated Inserts

With Accusize Industrial Tools 2387-2004PLUS 0.5 in 7-Piece Set Indexable Carbide Turning Tools, you can achieve the following turning operations

• Turning
  • Step turning
  • Taper turning
  • Chamfer turning
  • Contour turning
• Facing
• Grooving
• Parting
• External Threading

Features

• Shank Size (H x W): 1/2" x 1/2".
• Black oxide coating with smooth finish on each turning tool holder.
• 1 piece of C6 TiN coated carbide inserts with positive rake cutting angle mounted on each holder
• Coming with 10 additional carbide inserts with TiN coating or CVD coating that improve the tool life.
• Built-in chip breaker, great for lathe turning operations with general purposes

Works with AXA 250-101 or 250-102 quick change turning tool holders and AXA 251-111 quick change tool post sets

Components (Accessories and Parts) of Accusize 2387-2004PLUS 0.5 in 7 Piece Set Indexable Carbide Turning Tools w/ Additional 10 Carbide Inserts

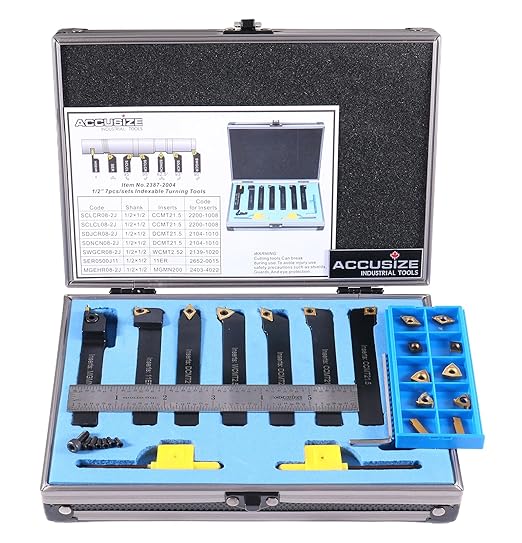

Each set includes:

• 7 pcs indexable turning tool holders each of which is with 1 carbide TiN coated insert installed;
• 10 pcs carbide TiN coated or CVD coated inserts, packed in 1 case;
• 7 pcs hex screws;
• 2 pcs hexagon keys;
• 1 styling case.

It is a big time-saving toolkit. Each insert holder comes with carbide inserts with C6 grade.

• MGEHR08-2J 1/2 x 1/2 inch indexable cut-off parting tool with a carbide TiN coated MGMN200 insert;
• SER0500J11 1/2 x 1/2 inch indexable external outside threading tool with a carbide TiN coated 11ER insert;
• SWGCR08-2J 1/2 x 1/2 inch 90-degree indexable turning tool with a carbide TiN coated WCMT2.52 insert;
• SCLCR08-2J 1/2 x 1/2 inch 95-degree indexable turning tool with a carbide TiN coated CCMT21.5 insert;
• SCLCL08-2J 1/2 x 1/2 inch 95-degree left-hand indexable turning tool with a carbide TiN coated CCMT21.5 insert;
• SDNCN08-2J 1/2 x 1/2 inch 62.5-degree indexable turning tool with a carbide TiN coated DCMT21.5 insert;
• SDJCR08-2J 1/2 x 1/2 inch 93-degree indexable turning tool with a carbide TiN coated DCMT21.5 insert;

Each set includes additional screws for each of the indexable cutters. It increases the tool life.

Downloadable Application Guide of Cutting Parameters and Accessory Guide

The cutting parameter is for reference only.

To make the toolkit more user-friendly, we put an application guide of cutting parameters inside. It helps you operate the tuning operations more efficiently. The guide also includes the specifications of the insert holders, insert codes, and screw sizes. Thus, if you use a cutter more frequently, you probably need extra inserts for it. Then you will know what inserts you need.

We carry the insert kits that are exclusive to the tool kit. The SKU of it is 2387-2004INSERTS. The insert kit has 5 models of inserts, each with 2 pieces. It will further improve the tool life.

• 2 carbide TiN coated MGMN200 double-end cut-off inserts
• 2 carbide TiN coated 11ER threading inserts
• 2 carbide TiN coated WCMT2.52 inserts
• 2 carbide CVD coated CCMT21.5 inserts
• 2 carbide TiN coated DCMT21.5 inserts

Parameters (*** Insert kit Item#: 2387-2004INSERTS (Sold Separately on Amazon))

Furthermore, we carry the insert for each of the holders separately. All inserts are listed as below:

• Accusize 2403-4022x10 10-piece set carbide TiN coated double-end cut-off MGMN200 inserts
• Accusize 2652-0015x10 10-piece set carbide TiN coated 11ER threading inserts
• Accusize 2139-1020x10 10-piece set carbide TiN coated WCMT2.52 inserts
• Accusize 2200-1008 10-piece set carbide CVD coated CCMT21.5 inserts
• Accusize 2104-1010X10 10-piece set carbide TiN coated DCMT21.5 inserts

Despite the fact that the tool kit comes with C6-grade inserts, we supply the inserts of the cutters to machine Aluminum, fully digging the potentiality and making our tool kit more professional, we supply the inserts of the cutters to machine aluminum.

• Accusize 2403-4023x10 10-pieces set carbide double-end cut-off MGGN200-LH inserts, for cutting aluminum, working with MGEHR08-2J holder.
• Accusize 2600-0015x10 10-piece set carbide 11ER-A60-LH PH3110 threading inserts, for cutting aluminum, working with SER0500J11 holders
• Accusize 2039-1020x10 10-piece set carbide WCGT2.522-AF, BU810 Grade inserts, for cutting aluminum, working with SWGCR08-2J holders
• Accusize 2000-1008x10 10 piece set carbide CCGT21.51 inserts, for cutting aluminum, working with SCLCR08-2J and SCLCL08-2J holders.
• Accusize 2004-1010X10 10 piece set carbide uncoated DCMT21.5 inserts, for cutting aluminum, working with SDNCN08-2J and SDJCR08-2J holders.
